| CSL Steering Wheel GT3 |
Full-size GT3-style wheel (300 mm diameter)
Designed for the Xbox Series X, S and Xbox One® consoles
Custom designed magnetic shifters for superior tactile response
Rocker-type paddle allows up and down-shifts with one hand (possible on both sides)
Made from anodized aluminum, precision cut with diamond texture grips
Two analog paddles reinforced with honeycomb structure, supporting four switchable modes:
Clutch bite-point mode (standard/advanced)
Clutch/handbrake mode
Brake/throttle mode (allows driving without pedals connected)
Mappable axis mode
Clutch bite-point system can be used in any game with analog clutch input
1”, 128 x 64 resolution OLED display (white)
Two 2-way toggle switches
Multi-Position Switches: two 12-position switches, rotary encoder mode
7-way FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder
Two high-bezel snap-dome buttons with laser-engraved P and N lettering. Realistic actuation force of ~2500 gf.
Seven standard buttons with removable button caps
Xbox and racing-style button caps included
Six face buttons compatible with Button Caps and Sticker Set (sold separately)
Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
Overmolded rubber grips with 50 Shore A hardness
Xbox® mode LED indicator
Weight: 1290 g (including quick release)
QR2 Lite Wheel-Side (preinstalled)
Carbon fiber-reinforced composite
Spring-loaded locking pin mechanism and tapered shape naturally ensures a tight fit
Can be attached to Base without touching the sleeve mechanism
Allows maximum torque on ClubSport DD and Podium DD bases
|

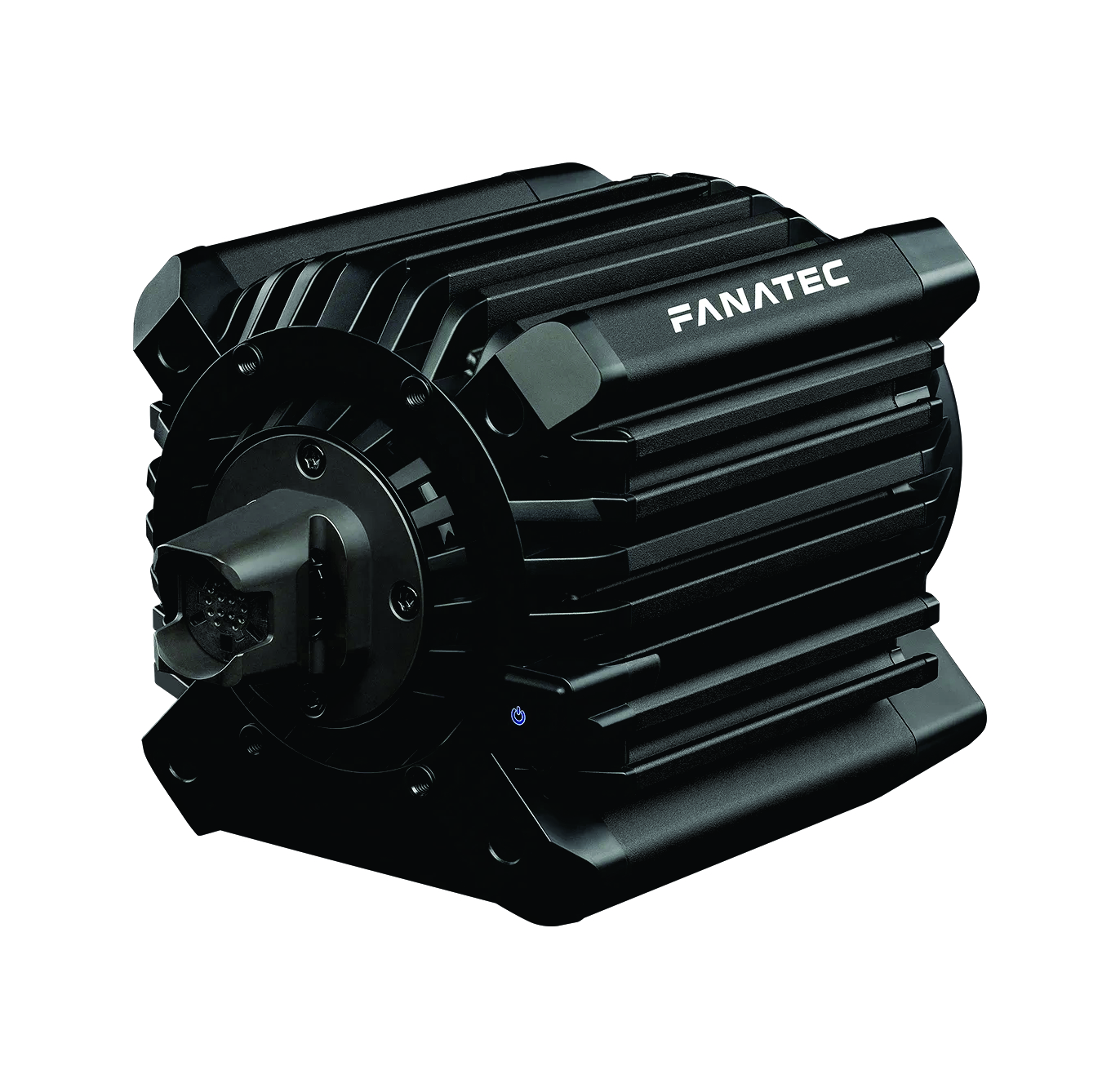

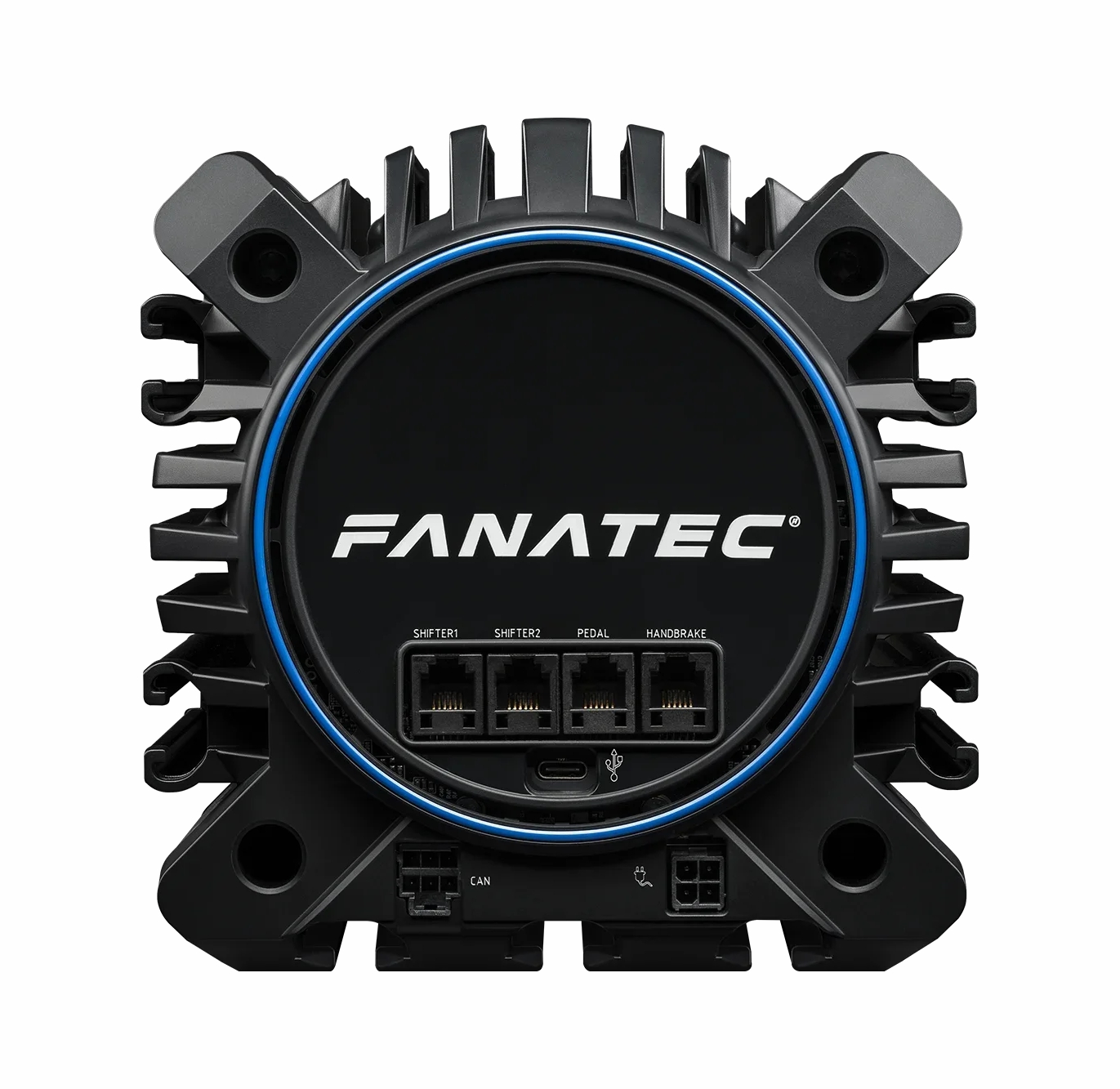

| ClubSport DD+ |
Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
Direct Drive servo motor
Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
18 Nm holding torque
Optimised skew angle on rotor magnets reduces cogging torque
Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
FullForce technology
QR2
Wheel Base optimised for QR2 from the ground-up
Electronics module integrated with shaft
Diecast aluminium with CNC-machined finish
Motorsport-derived quick release system
Works out-of-the-box on Windows PC and PlayStation®5 and PlayStation®4 consoles
Full Fanatec SDK support ensures compatibility out of the box for all major racing games
Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
High-resolution (contactless) Hall-position-sensor
Rotation: 2520 degrees (electronically limited, adjustable)
Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
Compatible with entire Fanatec ecosystem (see Compatibility section for details)
T-nut rail system on sides and bottom for easily adjustable hard-mounting
|
| Compatibility |
Peripherals:
The ClubSport DD+ Wheel Base is compatible with:
All Fanatec Steering Wheels (with QR2)
All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
ClubSport Shifter (all versions)
ClubSport Handbrake
All Fanatec Cockpits
ClubSport DD Table Clamp
ClubSport Table Clamp V2
Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms:
This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
This product is compatible with PC on all major racing games.
Xbox®: The ClubSport DD+ Wheel Base becomes compatible with Xbox One® and Xbox Series X, S when used with any Fanatec Xbox-licensed Steering Wheel.
Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.
|

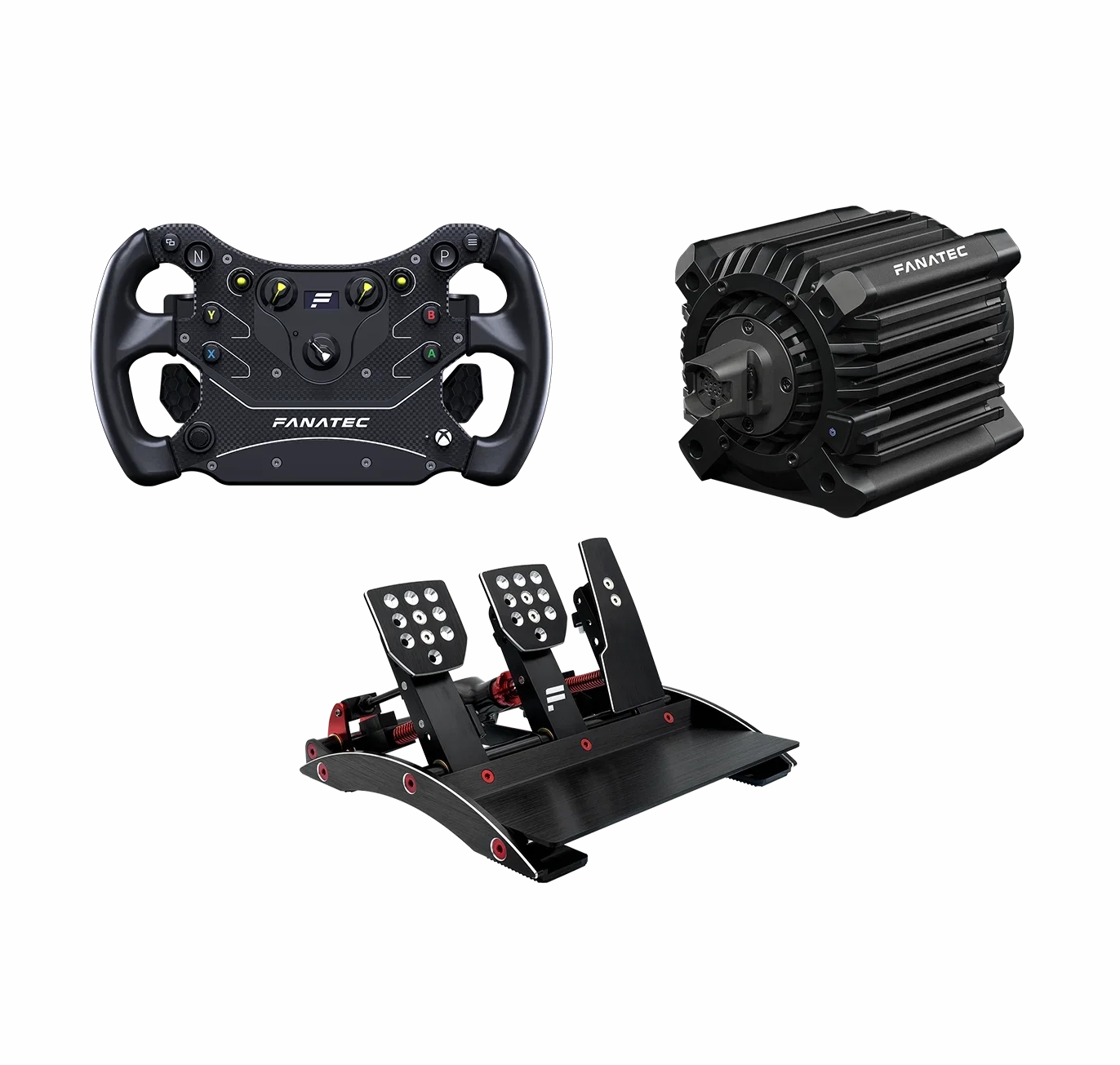

| What's Included |
CSL Steering Wheel GT3
– CSL Steering Wheel GT3
– QR2 Lite Wheel-Side preinstalled
ClubSport DD+
– ClubSport DD+ Wheel Base
– QR2 Base-Side (Type-F) preinstalled
– Power Supply (regional)
– 4x T-nuts for rail mount system
– USB cable (Type-C to Type-A)
– Quick Guide

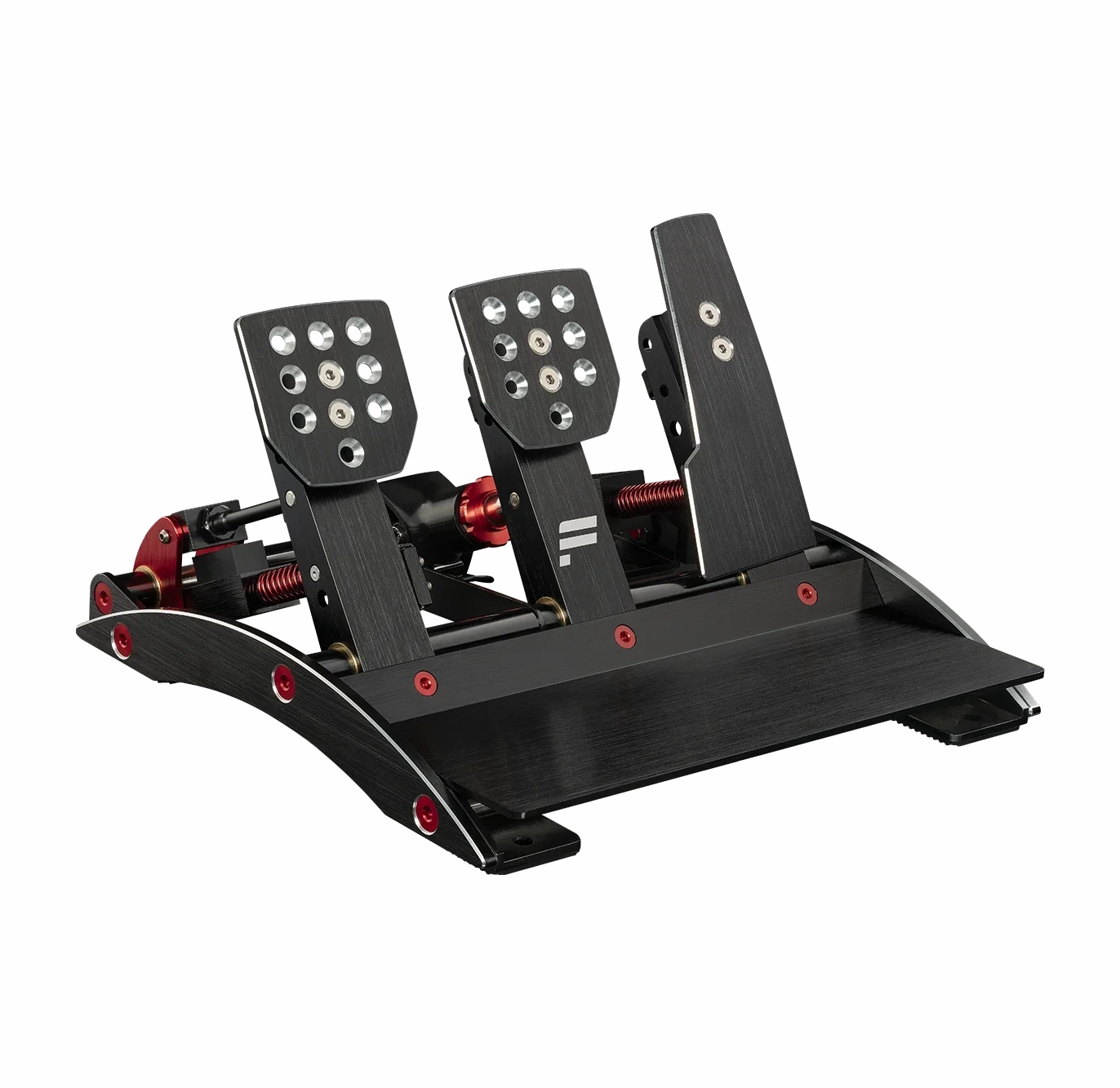

ClubSport Pedals V3
ClubSport Pedals V3
– 3x Pedal Extensions
– 3x D-shape pedal plates
– 1x Strong spring throttle (black)
– 1x Strong spring clutch (black)
– 1x RJ12 connection cable (150cm)
– 1x USB connection cable (180cm)
– 1x Lithium grease bottle
– 1x Quick Guide
|
