| ClubSport Steering Wheel F1® Esports V2: |
Officially licensed by Formula 1™
Replica of a steering wheel as used in formula cars. The compact diameter of 270 mm allows fast movements and reactions
Durable metal construction
Genuine Alcantara® grips
Magnetic paddle shifters (CSL Elite Magnetic Paddle Module, preinstalled)
3 mm-thick, black anodised aluminium paddle plates
Paddle module cage made of polymer composite
Neodymium magnets
Easily upgradable to ClubSport Magnetic Paddle Module or Podium Advanced Paddle Module (sold separately)
11 buttons
Analogue joystick
7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
Two vibration motors integrated with the grips, controllable through wheel Tuning Menu (SHO) or by game through Fanatec SDK
RevLEDs with nine multi-colour RGB LEDs to show motor RPM and optimal shifting point, programmable by the user via FanaLab and by game developers via the Fanatec SDK
Two FlagLEDs with three multi-colour RGB LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, programmable by the user via FanaLab and by game developers via the Fanatec SDK
Vibrant blue LED display to show telemetry data such as speed or gear selection (in supported games)
Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base / racing wheel for details)
Improved electronics means wheel is firmware-updatable
QR2 Lite Wheel-Side upgrade included (must be installed before use)
CSL DD QR2:
Direct-Drive system delivers instant, detailed force feedback
Linear, consistent performance (5 Nm peak torque)
Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
High-resolution (contactless) Hall-position-sensor, same as Podium Series
Steering axis made from carbon fibre-enhanced composite
Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
Rotation: 2520 degrees (electronically limited, adjustable)
Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
QR2 quick release system
Motorsport-derived quick release
Tapered shape naturally ensures a tight fit
Carbon fibre-reinforced polyamide construction
Exchangeable
T-nut rail system on sides and bottom for easily adjustable hard-mounting
Optional table clamp (sold separately), supports 5 to 60 mm table thickness
Ports:
Power supply
USB-C to PC / console
Fanatec DataPort-C
Shifter 1
Shifter 2 (Sequential only)
Pedal
Handbrake
Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
|

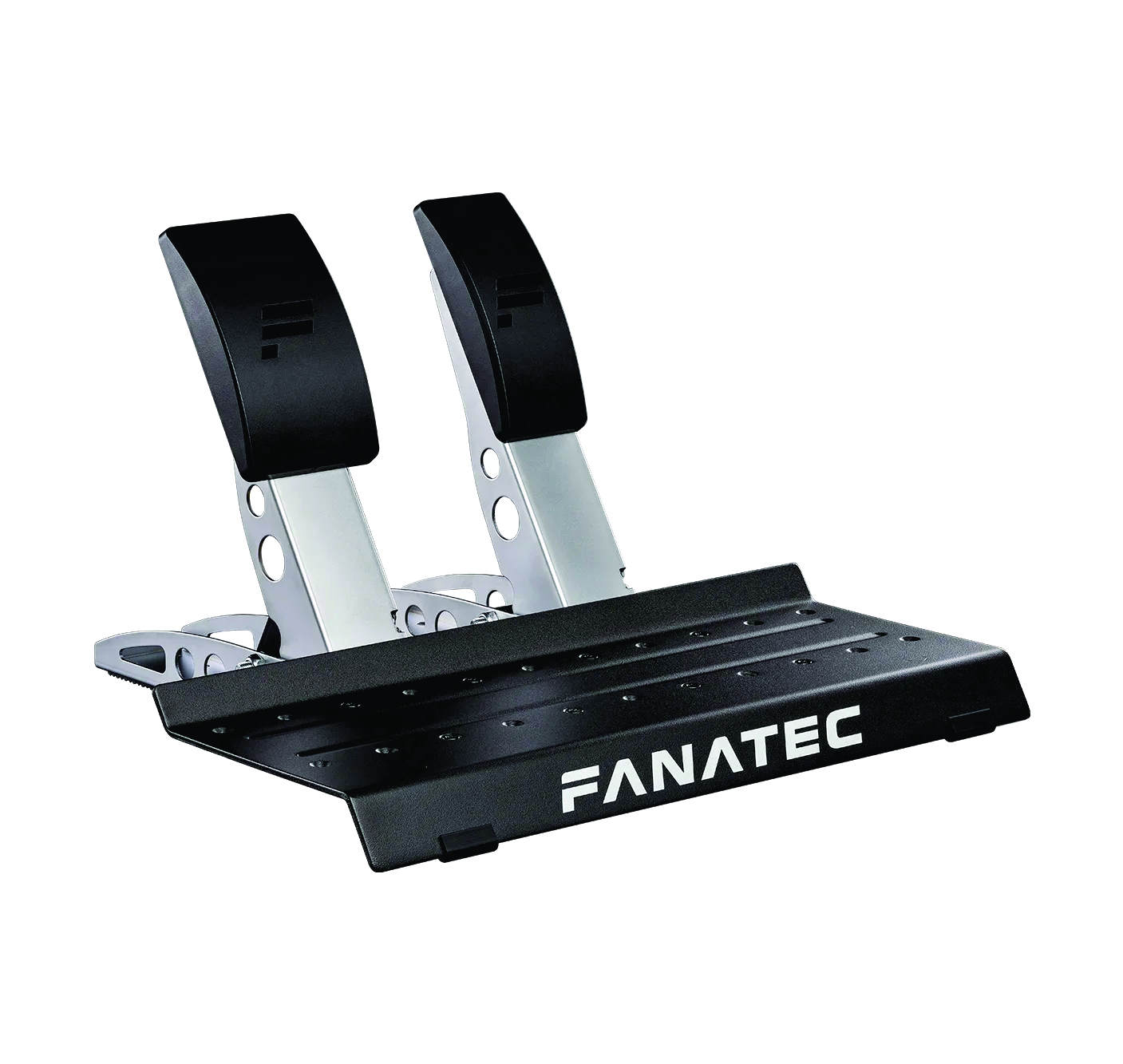

| CSL Pedals: |
Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
CSL Pedals Clutch Kit provides a third pedal for the lowest price
CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
Pedal position can be adjusted sideways along heel rest
Height-adjustable pedal faces
|
| Compatibility: |
Peripherals:
The CSL DD QR2 Wheel-Base is compatible with:
All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
Fanatec ClubSport Shifters (including ClubSport Static Shifter Paddles)
Fanatec ClubSport Handbrakes
Fanatec Cockpits
ClubSport DD Table Clamp
CSL DD Table Clamp
ClubSport Table Clamp V2
Boost Kit 180
Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms:
PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X, S when used with any Fanatec Xbox-licensed Steering Wheel.
PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
|
